DS |
ML4 |
ML6 |
| X-OMR |
560 |
530 |
530 |
| Y-OMR |
637 |
610 |
610 |
| X (Customer) |
528 |
482 |
466 |
| Y (Customer) |
601 |
564 |
556 |

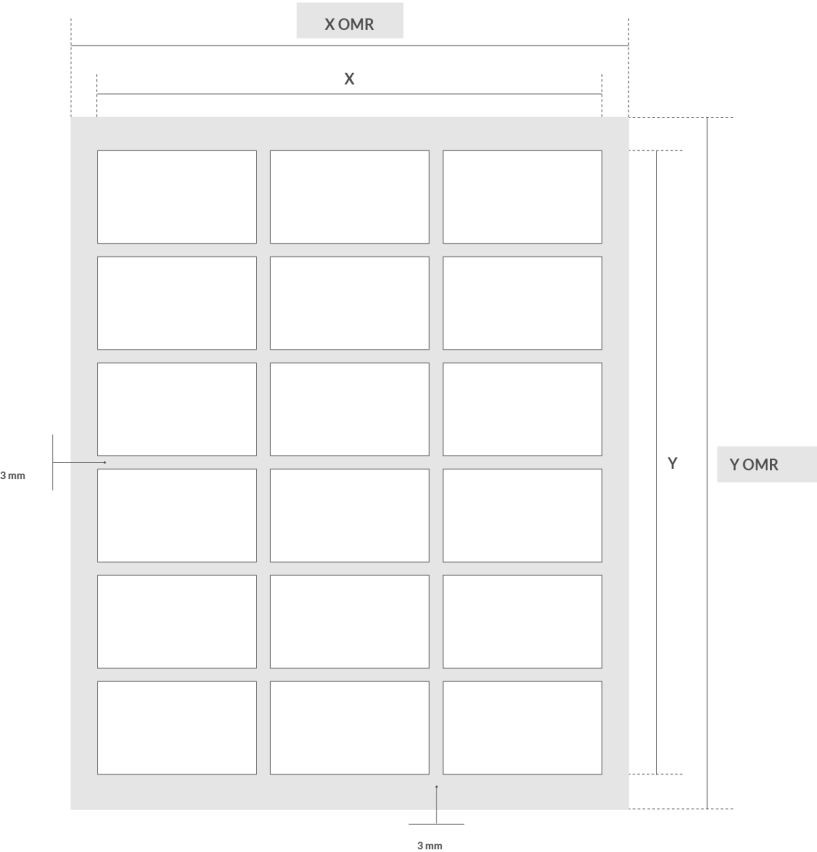

1. Please note that X/Y Customer is the surface area available for the customer's PCBs.
2. Please note that the quantity of PCBs (in the area available for the customer's PCBs) will vary according to the size of each PCB.
